Product display

Acrylic Floor

Customised according to site area

MOQ: 500 square metres

Application: Designed for sports such as basketball, tennis, and badminton, it delivers athletic performance that meets the demands of professional competitions.

Description:

Rigid acrylic court systems represent a high-performance sports surface material widely used outdoors, favored for its exceptional durability, outstanding cost-effectiveness, and relatively straightforward installation process.

The core of its application lies in applying multiple layers of acrylic coatings with distinct functionalities over a solid, stable concrete or asphalt foundation.

Inquire now Next product

Product Details

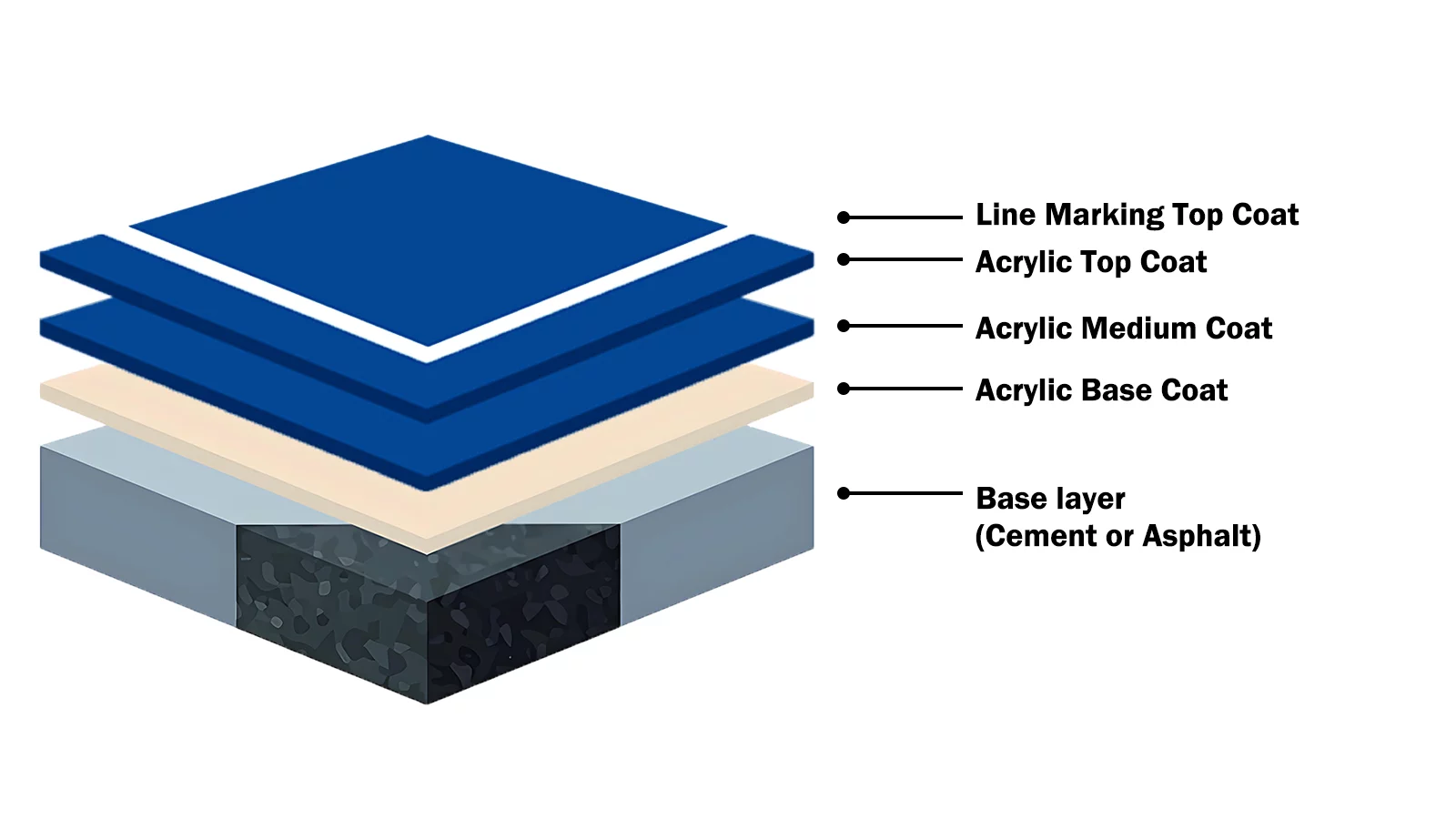

The hard acrylic court system is a multi-layered, high-performance sports surface solution. It involves layering composite materials—composed of acrylic emulsion, selected quartz sand, functional additives, and pigments—onto a solid base layer. This process ultimately creates a professional court with stable technical specifications and an exceptional playing experience. Its application is a scientific and rigorous process.

Parameter	Specification	Test Standard/Method
Thickness	1.2 - 2.0 mm	-
Hardness	≥ Shore D 80	ASTM D2240
Rebound	≥ 90%	GB/T 14833
Slip Resistance	0.5 - 0.7 (dry state)	ASTM E303
Abrasion Resistance	≤ 0.15 g (500 rpm/1 kg load)	GB/T 1768
Tensile Strength	≥ 2.5 MPa	ASTM D2370
Compression Recovery	≥ 90%	ASTM F1551
Shock Absorption	10% - 25%	EN 14808

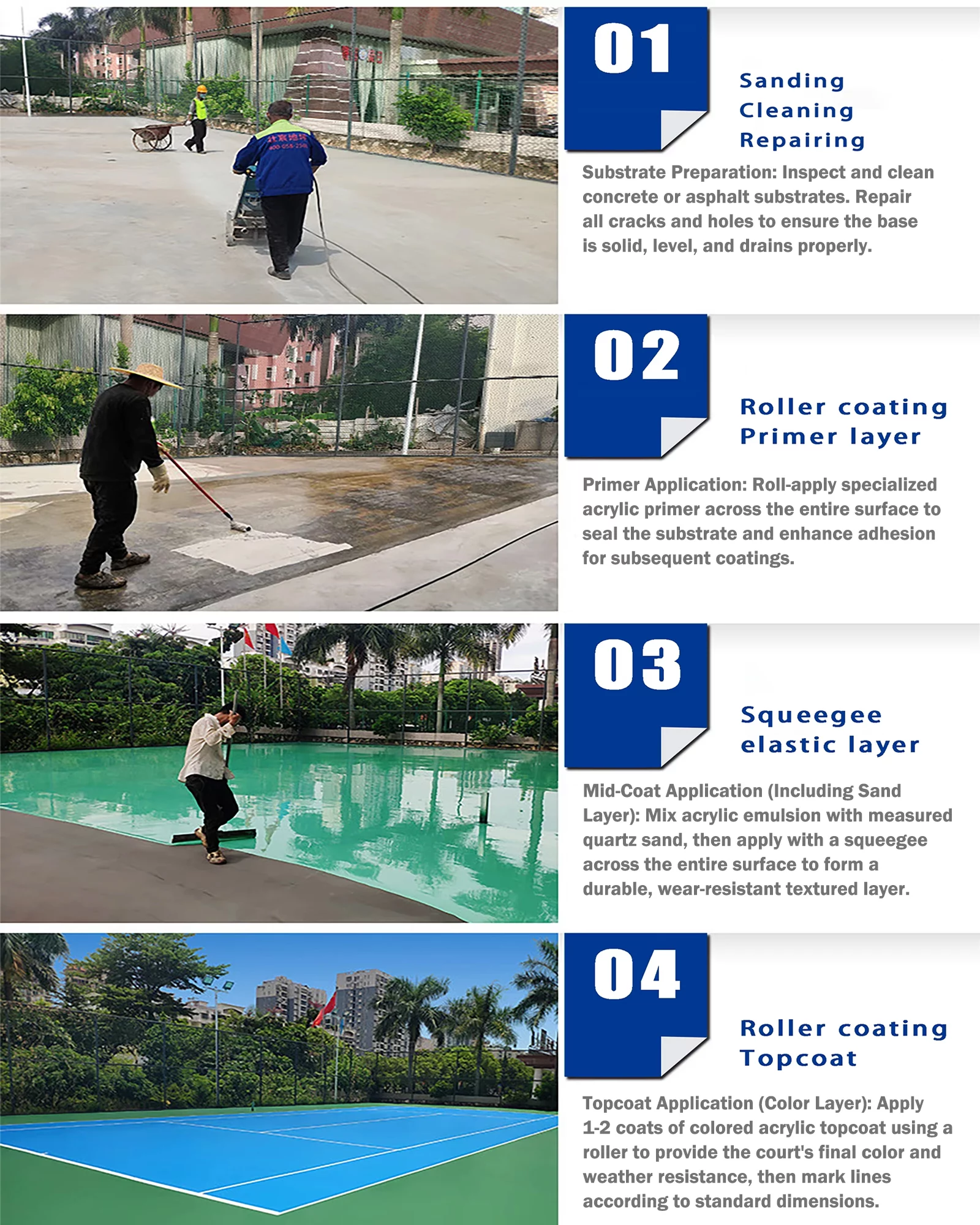

Construction Steps

1. Substrate Preparation
· Inspect and clean concrete or asphalt substrates.
· Repair all cracks and holes to ensure the base is solid, level, and drains properly.

2. Apply Primer Coat
· Roll-apply specialized acrylic primer across entire surface.
· Purpose: Seal substrate and enhance adhesion for subsequent layers.

3. Apply Intermediate Coat (Including Sand Layer)
· Mix acrylic emulsion with measured quartz sand.
· Spread evenly across entire surface using a squeegee to form a durable, wear-resistant textured layer.

4. Apply Topcoat (Color Layer)
· Roll 1-2 coats of colored acrylic topcoat.
· Purpose: Provide final court color and weather resistance.

5. Line Marking
· Measure and mark lines to standard dimensions.
· Apply masking tape to define lines, then paint with specialized white or yellow line paint.

6. Curing
· Allow the surface to cure undisturbed for at least 48-72 hours after application.
· Use only after the coating has fully cured.
